NOTE: For best results, clean, prime and paint unpainted skid plate before installation.
Chock front wheels and jack the rear of the cart up approximately 6 inches and secure with jack stands, or back cart onto car ramps.
STEP 1

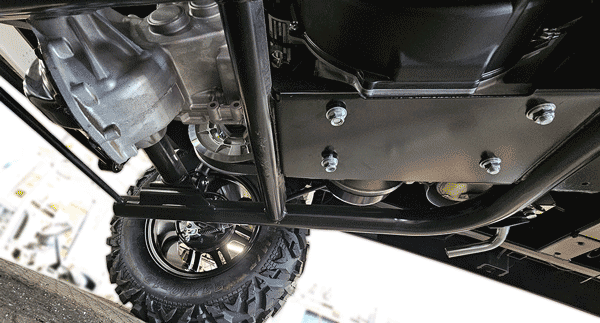

Using a 14mm wrench, loosen the two, rear engine mounting bolts from underneath the engine plate, leaving a 3/16” gap as shown. (Figure #1)
STEP 2
FIGURE 1
From the rear of the cart, align the slotted holes of the skid plate with the two loosened engine mounting bolts and slide under the nuts.
STEP 3

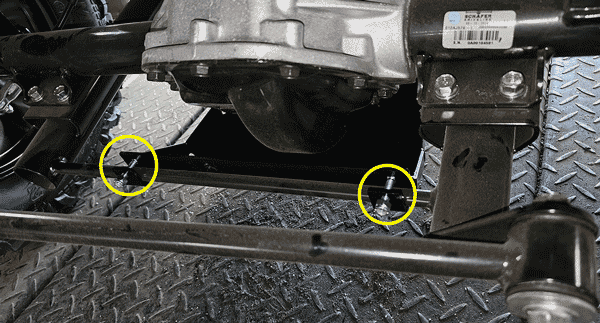

Align the rear skid plate tabs with the half-inch diameter horizontal stabilizer at the rear of the carrier frame and push upward until seated. Install the 2 carriage bolts and tighten the self-locking nuts enough to secure the rear of the skid plate, (Figure #2)
STEP 4
FIGURE 2
Tighten the two engine mounting bolt nuts, securing the front of the skid plate. (Figure #3)
STEP 5
FIGURE 3

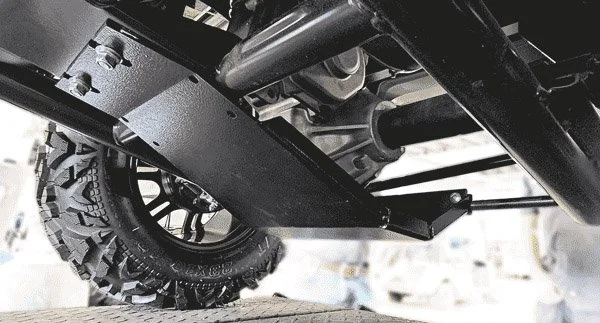

Lower cart and enjoy driving your Yamaha golf cart, knowing your transaxle is fully PROTECTED!
STEP 6
WARNING: DO NOT USE JACK ON INSTALLED SKID PLATE!
